3D Line Laser Scanning — Fast, Flexible, Zero Damage · Preferred Solution
Non-Contact Inline Measurement System
Full dimensional measurement for headlamps, rear lamp A/B, light bars. Gap/Flush 100% inspection with correlation to traditional checking fixtures & CMM. Non-contact is the preferred technology route for most lamp products.
✓
Repeatability ±0.05mm
✓
MES System Support
✓
Correlation to Checking Fixtures / CMM
✓
Safety Light Curtain + Door Lock
✓
Manual / Robot Load-Unload
✓
Fault Diagnosis System
01
3D Line Laser Scanning
Emits laser line, captures deformed fringe pattern, generates 3D point cloud via triangulation. Hundreds to thousands of 3D points per scan.
02
Non-Contact Non-Destructive
No mechanical contact — avoids part damage. Suitable for glossy or chrome surfaces. Zero scratch risk, low maintenance.
03
High Flexibility Multi-Product
Measurement points can be added/deleted/densified anytime during production. Simple fixtures — positioning only, low cost.

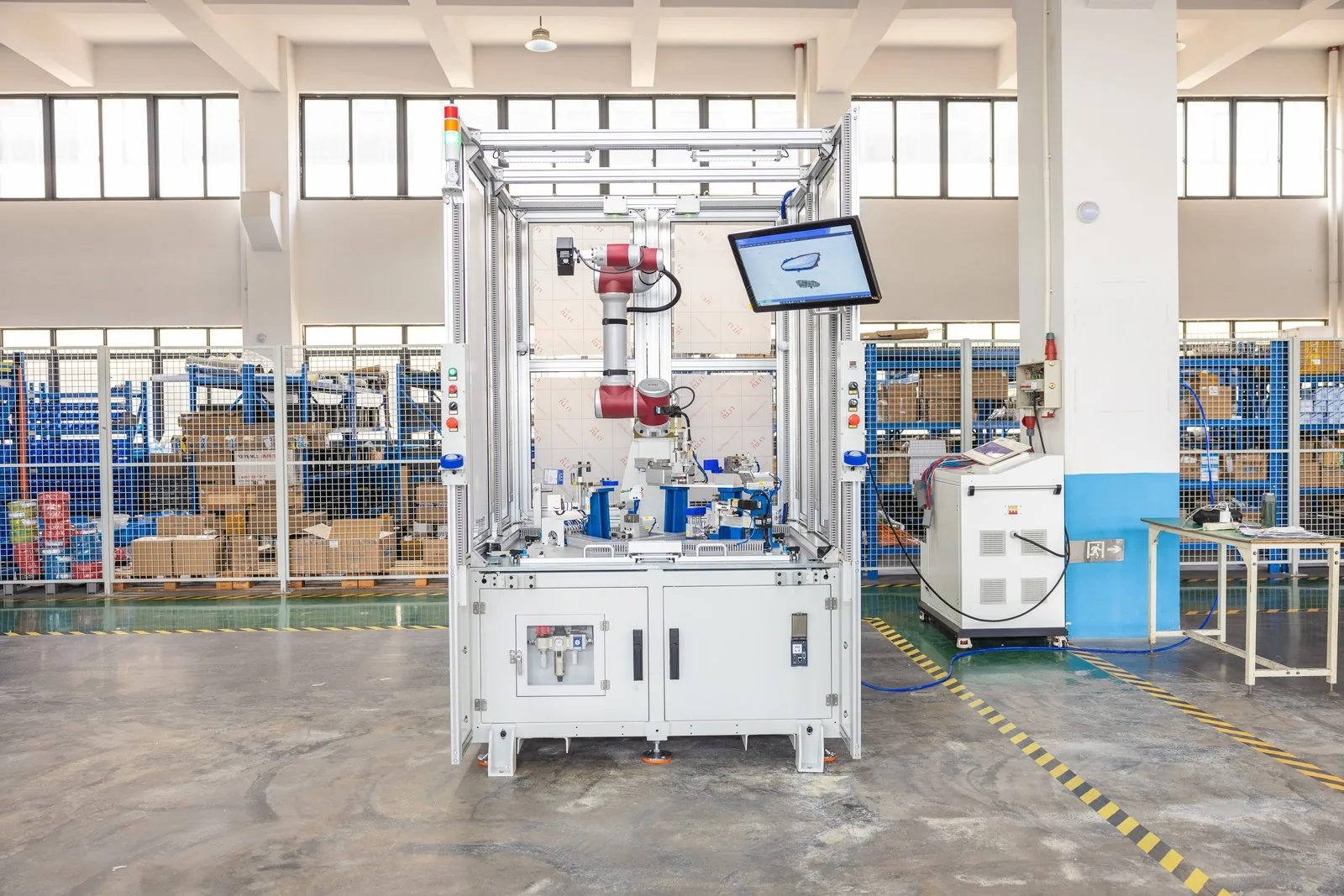

Equipment
Equipment

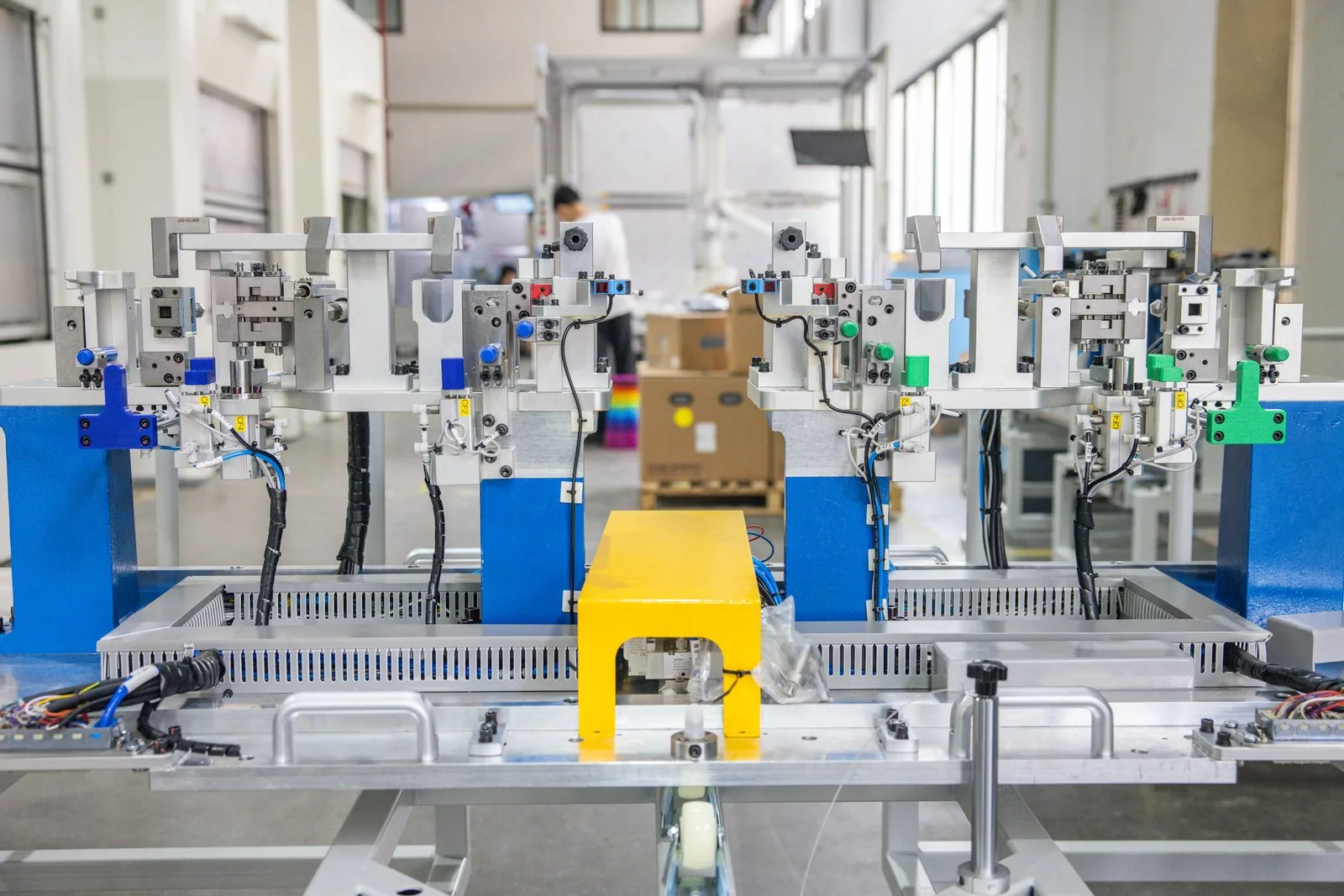

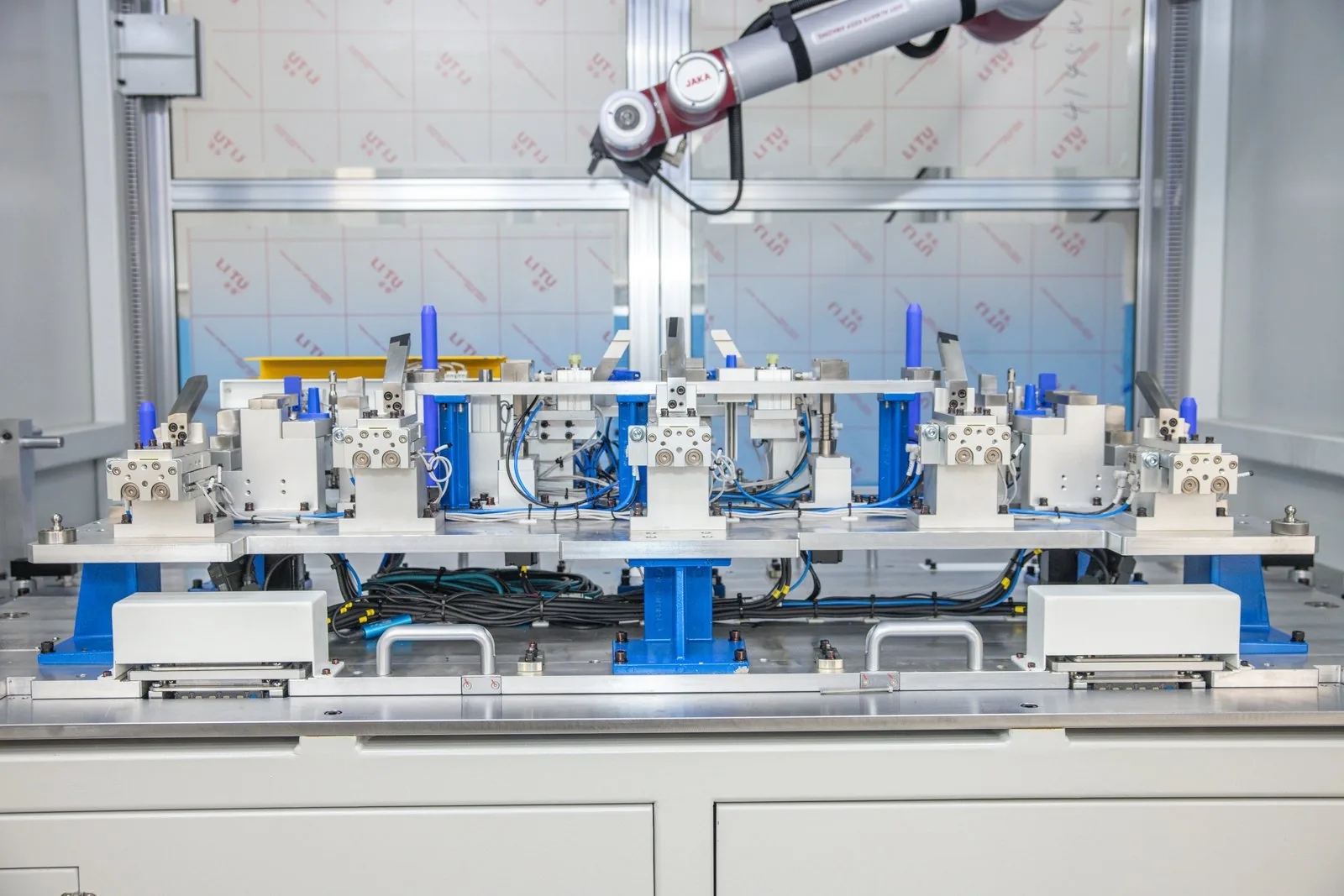

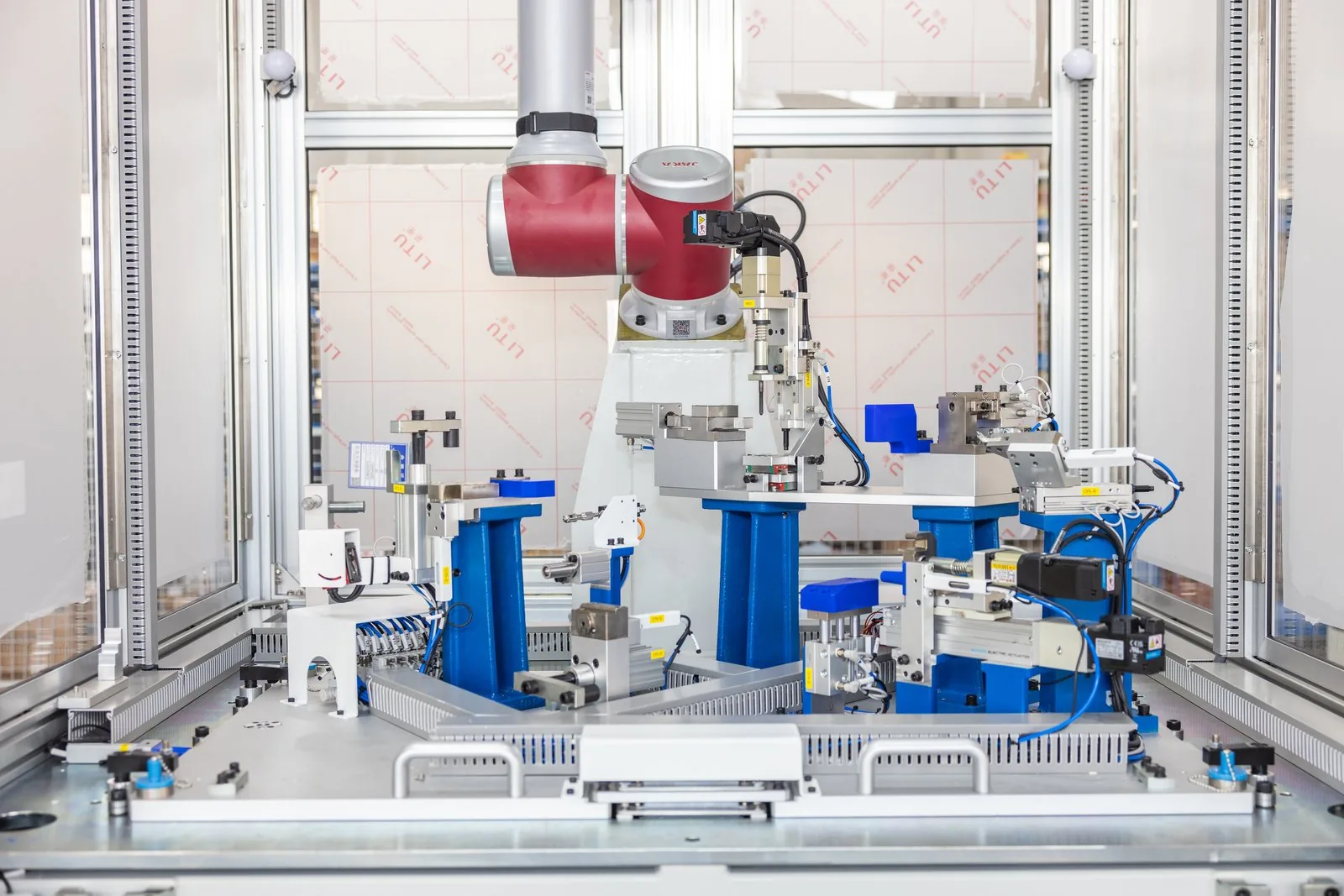

Fixtures
Fixtures
Videos
Videos

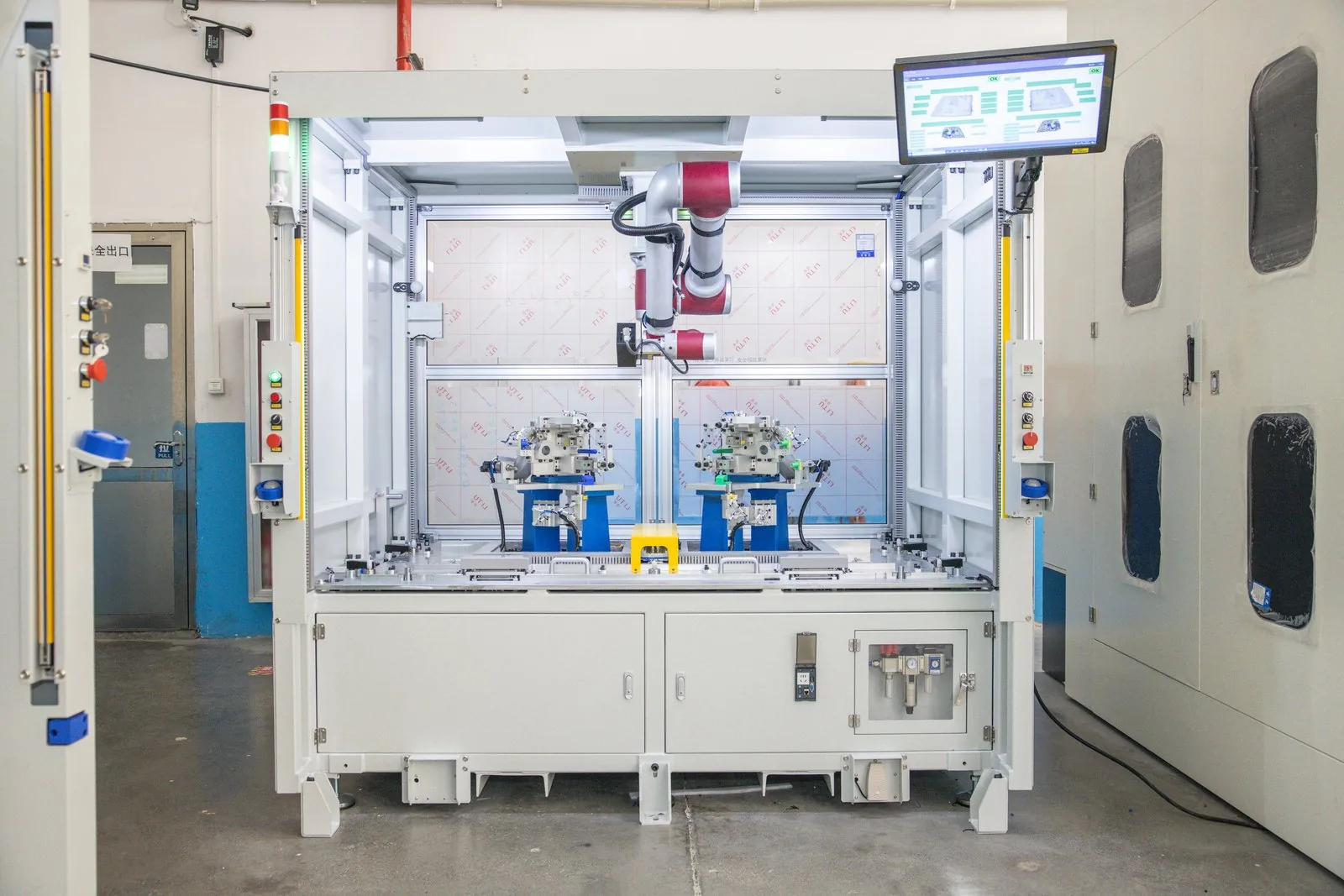

Single Station

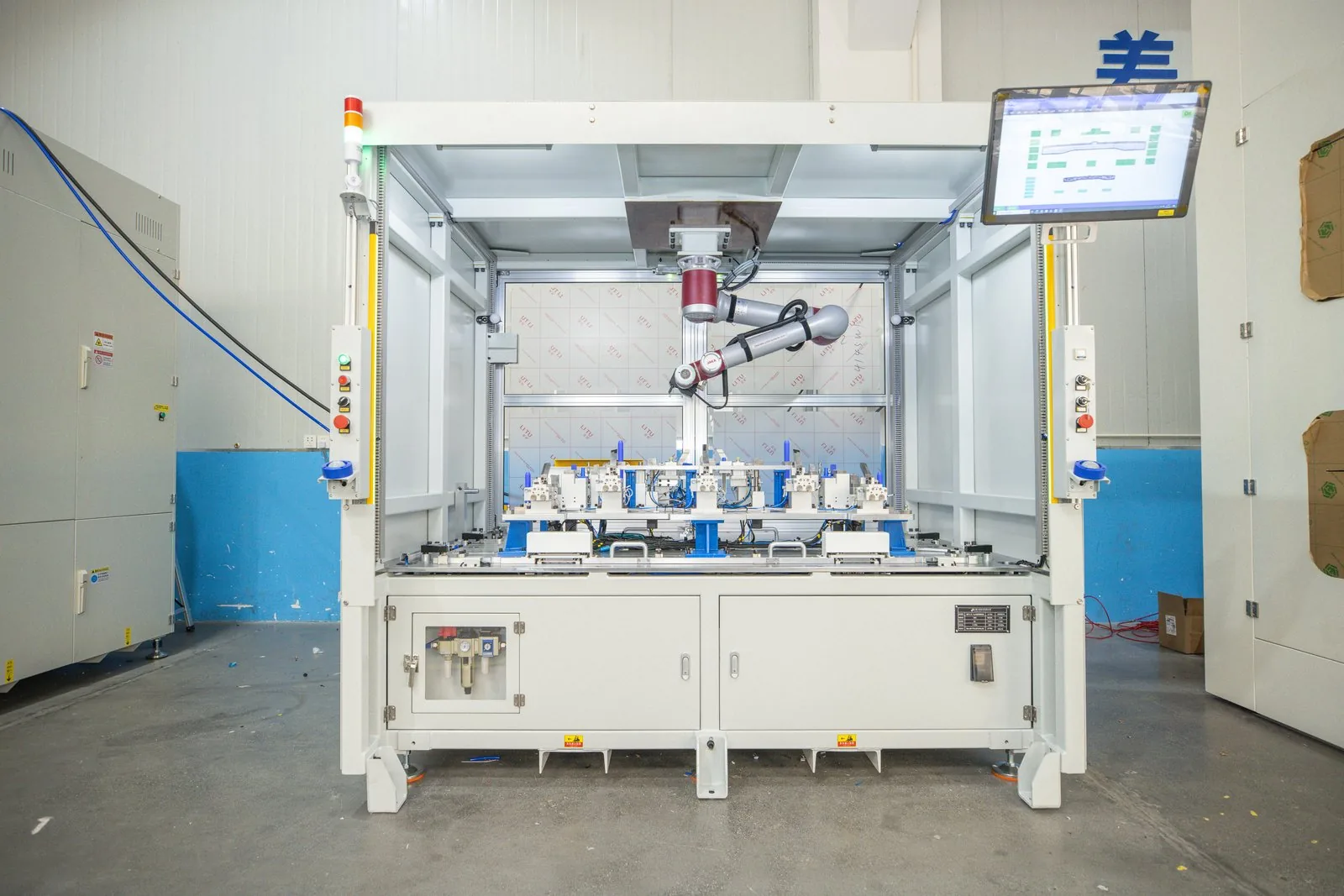

Dual Station
